Erhältlich in drei verschiedenen Ausführungen:

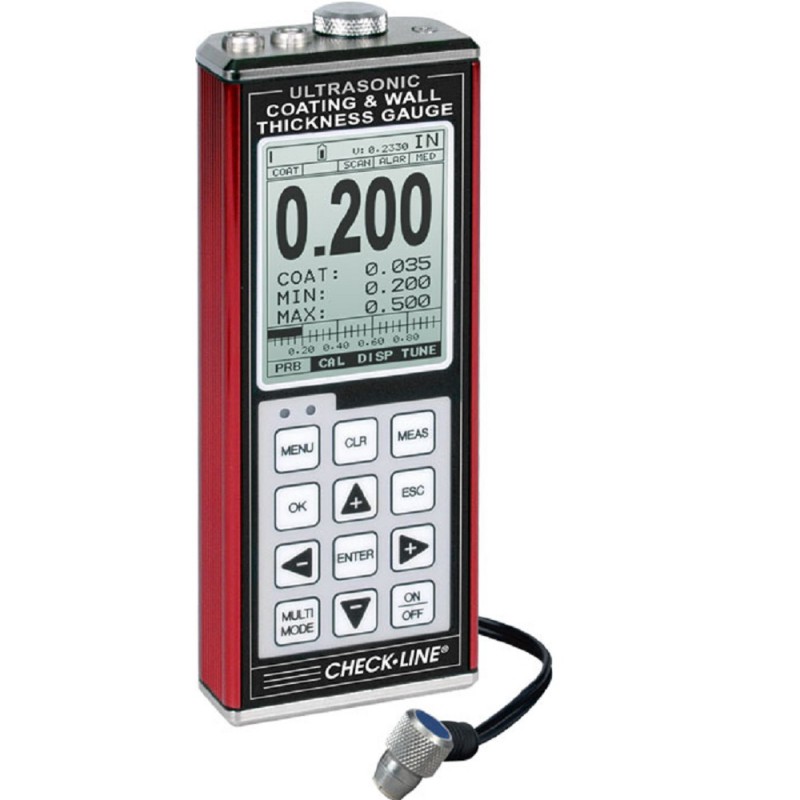

Das Ultraschall Wanddickemessgerät TI-CMXDL gehört zu unseren besten Wanddickenmessgeräten, die sowohl Schichtdicken als auch Wanddicken zuverlässig und schnell messen können - von nur einer Seite! Die Schichtdicke wird von der Wanddicke automatisch ausgeschlossen, wenn der Puls-Echo Modus eingeschaltet ist. So können Sie die feinsten Unebenheiten und Korrosionen zu erkennen, ohne die Beschichtung entfernen zu müssen.
Zu den Funktionen dieses professionellen Wanddickenmessers gehört unter anderem ein B-Scan, mit dem eine Profilansicht des Testmaterials, z.B. Rückwände oder die Unterseiten von Röhren oder Behältern, wiedergegeben werden kann. Die B-Bild-Erzeugung findet mit einer Rate von sieben Sekunden pro Abbildung statt (von rechts nach links).
Weitere fünf benutzerdefinierte Betriebsmodi sind vorinstalliert:
Coating On: Misst Wanddicken im Puls-Echo Modus. Die Wanddicke und die Schichtdicke werden separat angezeigt.
Coating Off: Misst Wanddicken im Puls-Echo Modus. Es wird nur die Wanddicke angezeigt.
Temperature Compensated: Misst Wanddicken im Puls-Echo Modus und verändert automatisch die Kalibrierung, um Temperaturveränderungen des Materials zu kompensieren.
Thru-Coat: Misst die Wanddicke mit dem Echo-Echo Modus (die Beschichtung wird nicht berücksichtigt).
Coating Only: Misst NUR die Dicke der Beschichtung.
Model | CMX | CMX-DL | CMX DL+ | CMX-DL+-C |
---|---|---|---|---|
Display Mode | ||||
Material thickness digits display | Yes | Yes | Yes | Yes |
B-Scan cross sectional display | Yes | Yes | Yes | Yes |
Combined B-Scan and digits display | Yes | Yes | Yes | Yes |
Coating Thickness Display | Yes | Yes | Yes | Yes |
Scan Bar Display | Yes | Yes | Yes | Yes |
A-Scan Display | - | - | - | + Rectified, - Rectified, Full Waveform (RF) Portrait & landscape views |
Measurement Range | PE: 0.63 - 1219.2mm (0.025 - 48”) PETP: 0.63 - 1219.2mm (0.025 - 48”) EE: 2.54 - 152.4mm (0.100 - 6.0“) EEV: 1.27 - 25.4mm (0.050 - 1.0”) CT: 0.01 - 2.54mm (0.0005 - 0.100”) PECT: 0.63 - 1219.2mm (0.025 - 48”) PECT: 0.01 - 2.54mm (0.001 - 0.100") | PE: 0.63 - 1219.2mm (0.025 - 48”) PETP: 0.63 - 1219.2mm (0.025 - 48”) EE: 2.54 - 152.4mm (0.100 - 6.0“) EEV: 1.27 - 25.4mm (0.050 - 1.0”) CT: 0.01 - 2.54mm (0.0005 - 0.100”) PECT: 0.63 - 1219.2mm (0.025 - 48”) PECT: 0.01 - 2.54mm (0.001 - 0.100") | PE: 0.63 - 1219.2mm (0.025 - 48”) PETP: 0.63 - 1219.2mm (0.025 - 48”) EE: 2.54 - 152.4mm (0.100 - 6.0“) EEV: 1.27 - 25.4mm (0.050 - 1.0”) CT: 0.01 - 2.54mm (0.0005 - 0.100”) PECT: 0.63 - 1219.2mm (0.025 - 48”) PECT: 0.01 - 2.54mm (0.001 - 0.100") | PE: 0.63 - 1219.2mm (0.025 - 48”) PETP: 0.63 - 1219.2mm (0.025 - 48”) EE: 2.54 - 152.4mm (0.100 - 6.0“) EEV: 1.27 - 25.4mm (0.050 - 1.0”) CT: 0.01 - 2.54mm (0.0005 - 0.100”) PECT: 0.63 - 1219.2mm (0.025 - 48”) PECT: 0.01 - 2.54mm (0.001 - 0.100") |
Measurement Rate | ||||
Manual | 8 readings per second | 8 readings per second | 8 readings per second | 8 readings per second |
Scan Mode | 250 readings per second | 250 readings per second | 50 readings per second | 50 readings per second |
Scan bar display | 10 readings per second | 10 readings per second | 10 readings per second | 10 readings per second |
Measurement Resolution | 0.01mm (0.001”) | 0.01mm (0.001”) | 0.01mm (0.001”), 0.001mm (0.0001”) selectable | 0.01mm (0.001”), 0.001mm (0.0001”) selectable |
Velocity Calibration Range | 309.88 - 18,542m/s (0.0122 - 0.7300in/µs) | 309.88 - 18,542m/s (0.0122 - 0.7300in/µs) | 309.88 - 18,542m/s (0.0122 - 0.7300in/µs) | 309.88 - 18,542m/s (0.0122 - 0.7300in/µs) |
Additional Features | ||||
High Speed Scan Mode | - | - | - | Yes |
Differential Mode | - | - | - | Yes |
Limit alarm mode | - | - | - | Yes |
B-Scan DisplCalibration Optionsay Speed | 15 readings per second | 15 readings per second | 15 readings per second | 10 to 200 readings per second |
Flaw Mode | - | - | Basic prove-up flaw detection using single element angle beam transducers- | Basic prove-up flaw detection using single element angle beam transducers |
Calibration Setups | - | - | - | 64 user-definable setups transferable to and from a PC archive |
Gates | - | - | 3 fully adjustable gates: start, stop, width & threshold | 3 fully adjustable gates: start, stop, width & threshold |
Damping | - | - | Adjustable damping (50 - 1500ohms) | Adjustable damping (50 - 1500ohms) |
Pulser Type | Dual square wave pulsers Pulse repetition frequency up to 250Hz | Dual square wave pulsers Pulse repetition frequency up to 250Hz | Dual square wave pulsers Pulse repetition frequency up to 250Hz | Dual square wave pulsers Pulse repetition frequency up to 250Hz |
Gain | Manual or automatic gain control (AGC) with 110dB range (limited) | Manual or automatic gain control (AGC) with 110dB range (limited) | Manual, automatic gain control (AGC) with 110dB range (limited), Linear time dependent gain (TDG) with adjustable slope | Manual, automatic gain control (AGC) with 110dB range (limited), Linear time dependent gain (TDG) with adjustable slope |
Timing | Precision temperature controlled crystal oscillator (TCXO) timing with single shot 100MHz 8bit ultra-low power digitizer | Precision temperature controlled crystal oscillator (TCXO) timing with single shot 100MHz 8bit ultra-low power digitizer | Precision temperature controlled crystal oscillator (TCXO) timing with single shot 100MHz 8bit ultra-low power digitizer | Precision temperature controlled crystal oscillator (TCXO) timing with single shot 100MHz 8bit ultra-low power digitizer |
Memory and Data Logging | • 4GB internal memory • Sequential and grid logging • Alpha numeric batch identification • OBSTRUCT indicates inaccessible locations • Bitmap graphic capture and capture viewer | • 4GB internal memory • Sequential and grid logging • Alpha numeric batch identification • OBSTRUCT indicates inaccessible locations • Bitmap graphic capture and capture viewer | • 4GB internal memory • Sequential and grid logging • Alpha numeric batch identification • OBSTRUCT indicates inaccessible locations • Bitmap graphic capture and capture viewer | • 4GB internal memory • Sequential and grid logging • Alpha numeric batch identification • OBSTRUCT indicates inaccessible locations • Bitmap graphic capture and capture viewer |
Calibration Options | ||||
1 - point | Yes | Yes | Yes | Yes |
2 - point | Yes | Yes | Yes | Yes |
Material selection | Yes | Yes | Yes | Yes |
Velocity (speed of sound) | Yes | Yes | Yes | Yes |
Transducer Probe Type | Dual element | Dual element | Dual element | Dual Element, Single Element (1 - 20Mhz), Contact, Matching Layer, Delay Line and Pencil |
Transducer Frequency Range | 1 - 10MHz | 1 - 10MHz | 1 - 10MHz | 1 - 20MHz |
Transducer Recognition | Automatic & manual - selectable from a list | Automatic & manual - selectable from a list | Automatic & manual - selectable from a list | Automatic & manual - selectable from a list |
V-path / dual path error correction | Automatic | Automatic | Automatic | Automatic |
Probe Zero | Automatic & manual (via integrated probe disk) | Automatic & manual (via integrated probe disk) | Automatic & manual (via integrated probe disk) | Automatic & manual (via integrated probe disk) |
Display | 1/8 VGA (greyscale) 62 x 45.7mm (2.4 x 1.8”) viewable area | 1/8 VGA (greyscale) 62 x 45.7mm (2.4 x 1.8”) viewable area | 1/8 VGA (greyscale) 62 x 45.7mm (2.4 x 1.8”) viewable area | 1/4 VGA AMOLED colour display 57.6 x 43.2mm (2.27 x 1.78”) viewable area Landscape Mode |
Display Refresh Rate | 25Hz | 25Hz | 25Hz | 120Hz |
Units (selectable) | mm or inches | mm or inches | mm or inches | mm or inches |
LED Backlight | on/off/auto | on/off/auto | on/off/auto | on/off/auto |
Repeatability / Stability Indicator | Yes | Yes | Yes | Yes |
Battery Save Mode | Auto | Auto | Auto | Auto |
Measuring range & accuracy depends on material, surface conditions and the transducer selected |
Minimum Radius for Convex Surfaces | 8,89 mm | |
Minimum Radius for Concave Surfaces | 76,2 mm | |
Minimum Headroom | 25,0 mm | |
Minimum Sample Diameter | 3,8 mm | |
Minimum Substrate Thickness - F | NA | |
Minimum Substrate Thickness - NFe | NA |
Messbereich: | Puls-Echo Modus: (Erkennung von Vertiefungen und Rissen) 0,63 - 254 mm Echo-Echo Modus: (Messungen durch Beschichtungen und Farbe) 2,54 - 102 mm. Der Messbereich kann je nach Dicke der Beschichtung schwanken. |
Max. Schichtdicke: | 2,54 mm |
Auflösung: | 0,01 mm |
Geschwindigkeit: | 1.250 bis 9.999 m/s |
Maßeinheiten: | Zoll oder Millimeter |
Sondentypen: | Dual Element (1 bis 10 MHz) |
Ausgang: | RS-232 für Übertragung von Einstellungen |
Speicher Kapazität: | Für mehr als 225.000 Messungen |
Batterie: | Drei 1,5V Alkaline oder 1,2V NiCad AA Zellen |
Batterielaufzeit: | Unter normalen Bedingungen 150 Stunden |
Auto Abschaltfunktion: | Bei 5 Minuten Nicht-Gebrauch |
Display: | 1/8 Zoll VGA Graustufenbild 62 x 45,7mm |
Tastatur: | Folientastatur mit 12 fühlbaren Tasten |
Gehäuse: | Gepresstes Aluminiumgehäuse mit vernickeltem Enstück (versiegelte Dichtung) |
Betriebstemperatur: | -10° bis 60°C |
Nettogewicht: | 383 g |
Abmessungen: | 63,5 x 165 x 31,5 mm |
Garantie: | 2 Jahre |
