G1071

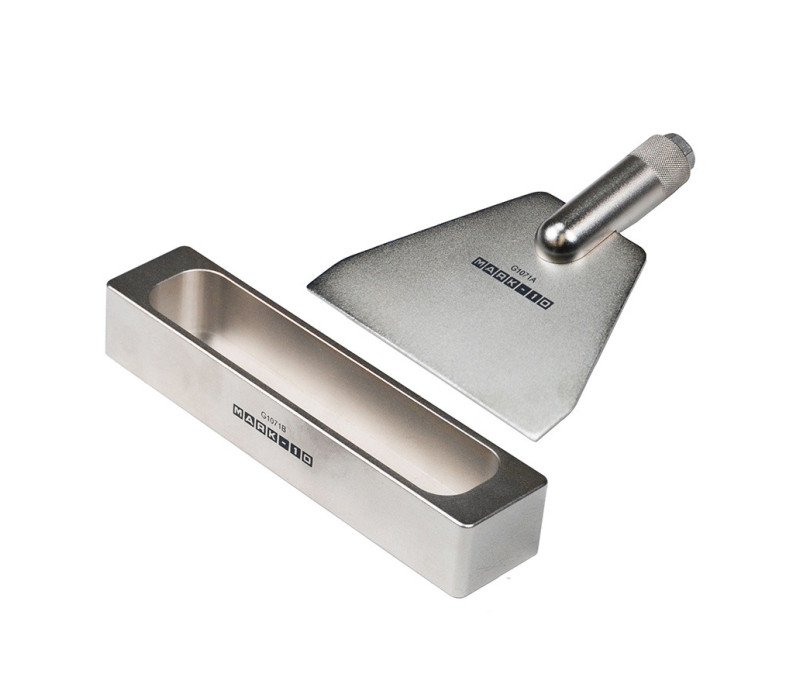

G1071 score bending fixture consists of an upper and lower die. Dimensions conform to TAPPI standard T829.

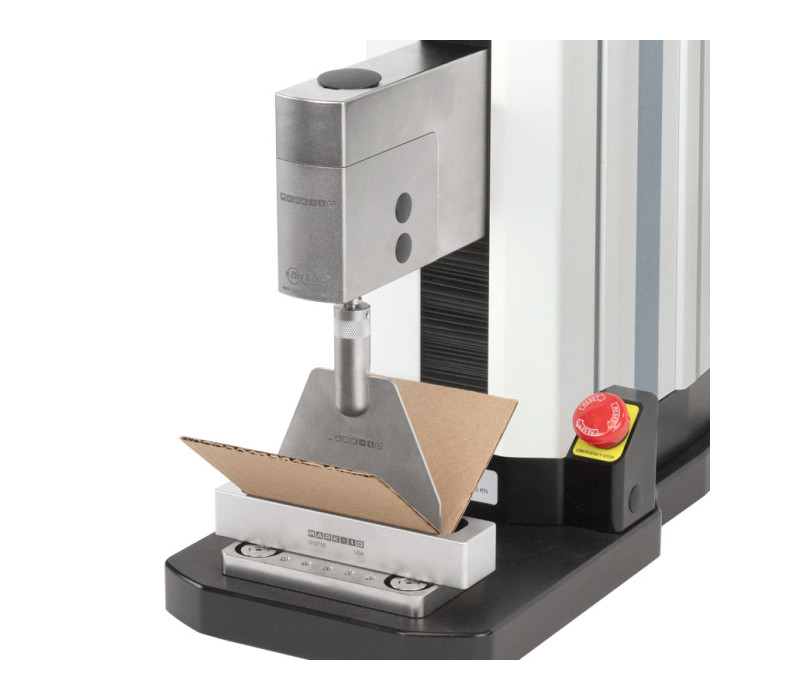

G1071 Score Bend Fixture mounted in a F305-EM Test Frame configured for a score bend test.

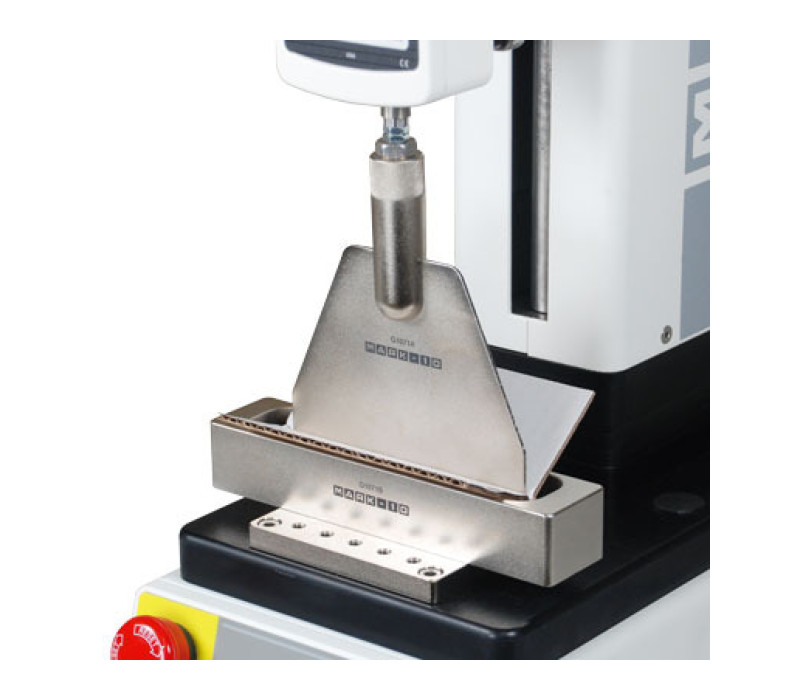

G1071 is shown mounted to a motorized test stand and force gauge.

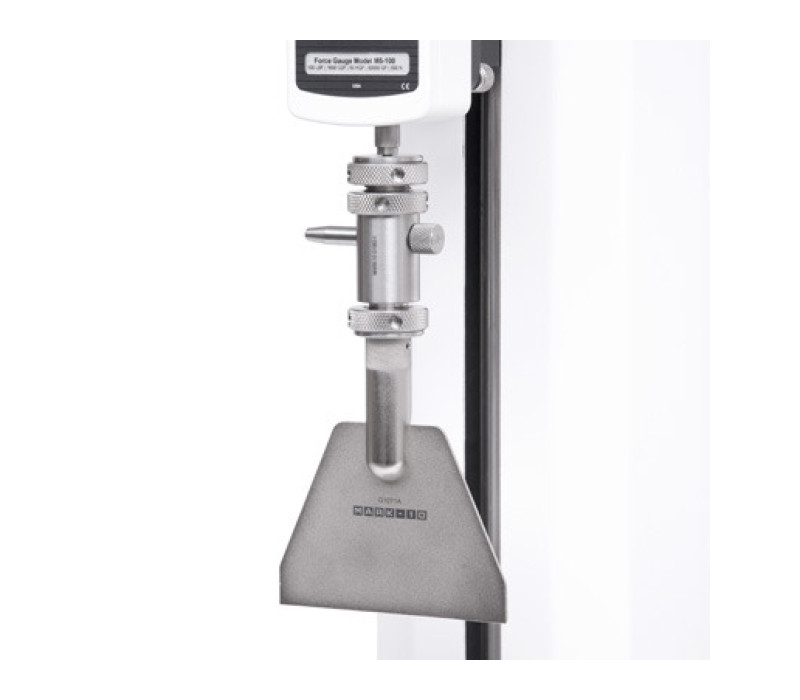

G1071 in combination with quick-change eye end adapters allow for simple grip removal / installation, and also prevent rotation.

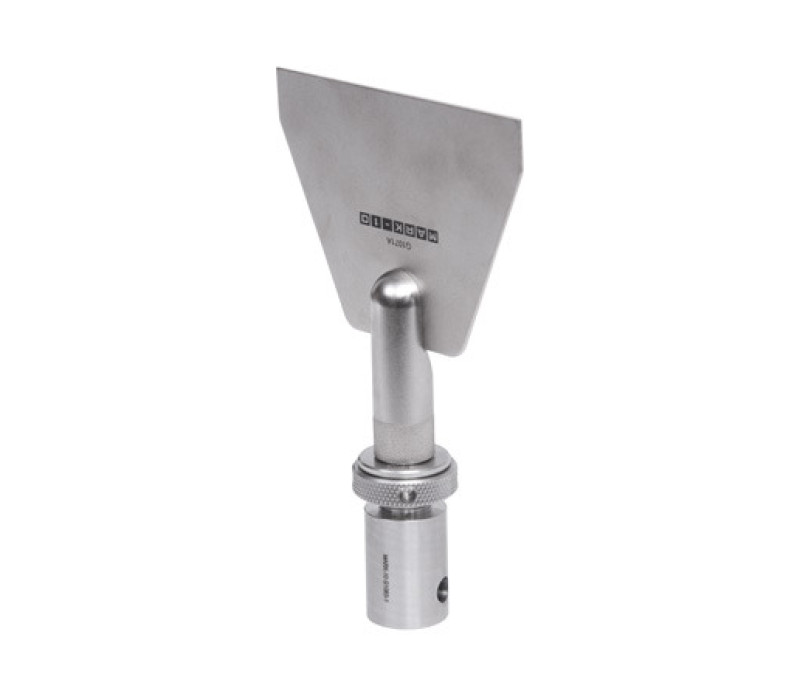

Eye end adapters are compatible with a variation of test stands, load cells, and force gauges

G1071 Score Bend Fixture

Set of upper and lower dies produce 90° bend in corrugated board and plastics
Meets the requirements of TAPPI T829
Fixtures are easily removable
Mounts directly to the following test frames (motorized test frames recommended): F105, F305, F505, F755, and F1505 test frames. ESM303, ESM750, ESM1500, ES30, TSC1000, and TSF test stands. Also compatible with models ES10/ES20 test stands when ordered with optional AC1060 mounting plate.
